Oxygen Cylinder Filling Plant - UNIVERSAL ING. LA. BOSCHI

Key Features UBP Series Plants

Floor mounted (no foundation)
Air cooled (zero water consumption)
Low power consumption
Low operating cost as zero maintenance and very less requirement of spares
Display can be set in 27 languages.
Automatic restart after voltage failure.
Remote start, stop, load, unload.
Dual pressure set point.
Saver cycle control minimizes energy consumption.

Our small oxygen cylinder filling Plant come in various depending upon the requirements our customers. Our small capacity gas oxygen nitrogen plant offers range of 30-50 m3/hr. It is manufactured using leak-proof stainless steel column and skid mounted version for generating high purity medical and industrial oxygen.

Range: 30-50 m3/hour

Small Capacity Model Specification Table

MODEL	CAPACITY IN M3/HOUR	NUMBER OF CYLINDERS PER DAY	Purity of oxygen produced	Pressure of oxygen in cylinders
UBP 30	30	130	99.7%	150-200BAR
UBP 40	40	160	99.7%	150-200BAR
UBP 50	50	200	99.7%	150-200BAR

Our medium capacity gas oxygen nitrogen Plant for cylinder filling come with capacity of 80-170 m3/hour. We design and manufacture our Plant in different capacities to meet the requirements of all types of users. The plant is fabricated using the trusted technology of ING. L. & A. Boschi, Italy. The medium capacity plant is known for its hassle-free operation and smooth performance.

Range:80-170 m3/hour

Medium Capacity Model Specification Table

MODEL	CAPACITY M3/HR FOR OXYGEN PRODUCTION	NUMBER OF CYLINDERS PER DAY	Purity of oxygen produced	Pressure of oxygen in cylinders
UBP 80	80	300	99.7%	150-200BAR
UBP 100	100	400	99.7%	150-200BAR
UBP 130	130	520	99.7%	150-200BAR
UBP 150	150	600	99.7%	150-200BAR
UBP 170	170	700	99.7%	150-200BAR

We offer large capacity cylinder filling oxygen nitrogen Plant with a capacity of 200-2000 m3/hour. Our Plant are designed and manufactured in various sizes for different requirements of our customers. Our Plant are designed and manufactured in technical collaboration with ING. L. & A. Boschi, Italy. The plant delivers trouble-free performance.

Range :200 m3/hr to 1000 m3/hr

Large Capacity Model Specification Table

MODEL	Capacity M3/Hr For Oxygen	Number Of Cylinders Filled Per Day	Purity Of Oxygen Produced	Pressure Of Oxygen In Cylinders
UBP 250	250	1000	99.7%	150-200BAR
UBP 300	300	1200	99.7 %	150-200BAR
UBP 400	400	1600	99.7%	150-200BAR
UBP 500	500	2000	99.7%	150-200BAR
UBP 600	600	2400	99.7%	150-200BAR
UBP 1000	1000	4000	99.7%	150-200BAR

Oxygen cylinder filing plant for industrial and medical applications

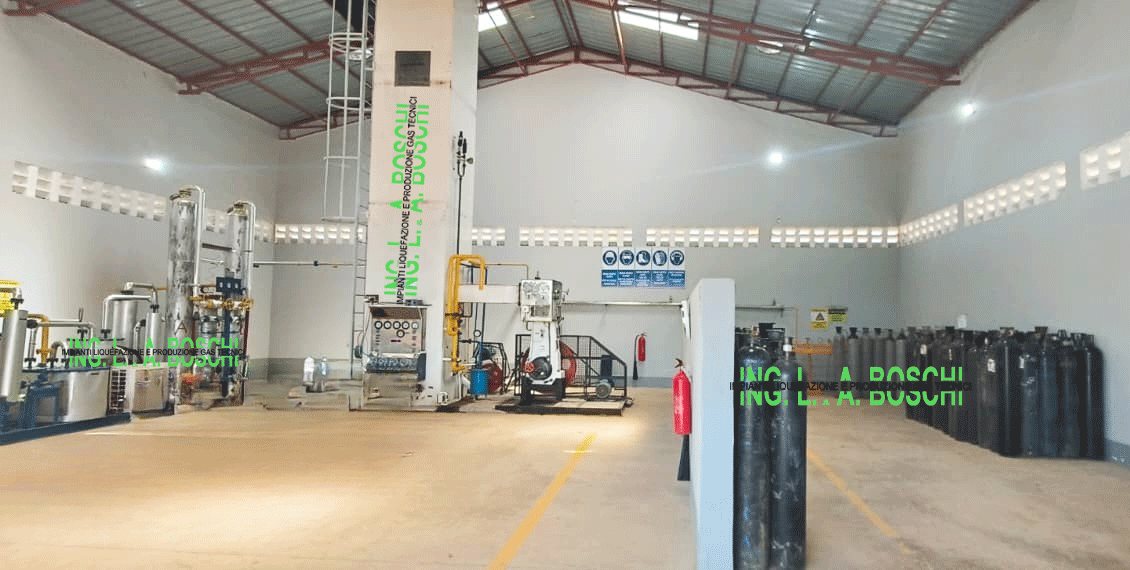

Oxygen cylinder filling plant is ideal for meeting the requirements of small to medium scale industries. Usually, small industries tend to store oxygen in oxygen cylinder for future use. In other words, it is their O2 backup in case the plant mal-functions. We manufacture and supply cylinder filling systems in various capacities as per the customer requirements. Cylinder filling system comprises of cylinders, liquid pump, cryogenic storage tank and cylinder manifold, both of which are made with stainless steel for durability and dependability. Hospitals also prefer to use cylinders for meeting their requirements of medical oxygen.

By default, our O2 plant generates oxygen in liquid form. However, the O2 cylinder filling plant is equipped with a liquid pump that draws LOX from the condenser of column –cold box and compresses the same to pressure between 150-200 bar. Then LOX passes through an internal gas vaporizer inside the cold box automatically converting liquid oxygen into high pressure O2 for filling into cylinders. And, the process does not lose any purity and is bone dry (-60 dew point). There is no contamination in oxygen filled into cylinders. Oxygen gas coming out of the cold box with purity up to 99.7% at high pressures directly filled into cylinders of oxygen cylinder filling manifold.

Get Oxygen Cylinder Gas Filling System Project Factory Cost

We install oxygen gas filling system in various capacities depending upon the requirements of customers. The oxygen cylinder gas filling plant can be customized as per the requirements of the customers. Only the best quality materials are used in the fabricating. We value the trust our clients have for our commitment to quality. Being manufactured with the latest cryogenic technology, our GOX and LOX plants are known for low power consumption. The plants are known for delivering seamless performance for years requiring minimum maintenance.

Name of the Models	UBP - 50	UBP - 100	UBP - 130	UBP - 170	UBP - 200	UBP - 300	UBP - 400	UBP - 500	UBP - 1000
Technical Specifications
Capacities(Cubic meter/hr.)	50	100	500	700	200	300	400	500	1000
No. of Cylinders in a Day (Oxygen/Nitrogen)	200	400	500	700	800	1200	1600	2000	4000
